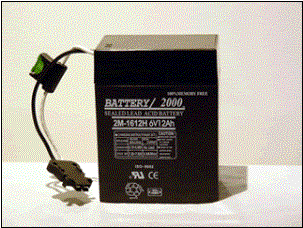

| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|
| 2M-1612H |
Standard Range |
6V-12Ah |
|
| |
| |
|
SPECIFICATIONS |
|
| |
|
|
|
|
|
|
Nominal Voltage |
6 |
|
| |
|
|
Terminal Type |
H Type
connector |
|
| |
|
|
Max. Charging Current |
3.60Amps |
|
| |
|
|
Internal Resistance |
20 Mili. Ohms |
|
| |
|
|
Weight |
2.25kg (5.22
lbs.) |
|
| |
|
|
Dimensions |
Length |
108mm (4.25") |
|
|
| |
|
|
Width |
70mm (2.76") |
|
|
| |
|
|
Height |
140mm (5.22") |
|
|
| |
|
|
Total Height |
140mm (5.22") |
|
|
| |
|
|
Plates |
Separator |
|
| |
|
|
Lead Calcium alloy |
Glass Fiber |
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
| |
|
Capacity after 6 months storage |
82% |
|
| |
TOY CAR BATTERY |
Capacity after 12 months storage |
64% |
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
| |
|
|
|
|
104*F (40*C) |
|
102% |
|
| |
Product Features |
|
|
|
|
|
77*F (25*C) |
|
100% |
|
| |
|
|
|
|
32*F (0*C) |
|
85% |
|
| |
Maintenance
Free. |
|
|
|
58*F (15*C) |
|
65% |
|
| |
Sealed Construction makes
it spill proof. |
|
Capacity @ 77*F (25*C) |
|
| |
Vent
system automatically opens and reseals. |
12.0Ah @ 20hour rate to 1.75V per cell |
|
| |
Excels at standby or
cycle application. |
|
11.4Ah @ 10 hour rate to 1.75V per cell |
|
| |
Built with heavy duty
grids and virgin lead. |
|
10.2Ah @ 5 hour rate to
1.75V per cell |
|
| |
Rugged ABS housing for
easy handling. |
|
7.2 Ah @ 1 hour
rate to 1.75V per cell |
|
| |
Battery will operate in
any position. |
|
|
Operating Temperature Range |
|
| |
Battery is 100% memory free |
|
|
Discharge |
(-4*F) (-20*C)
to (+140*F) (60*C) |
|
| |
|
Charge |
(14*F)
(-10*C) to (+122*F) (50*C) |
|
| |
We recommend a constant voltage charge |
Recommended |
(65*F) (20*C)
to (77*F) (25*C) |
|
| |
Do not charge in upside down position. |
Charging (constant voltage) |
|
| |
|
|
Cycle use |
7.25
- 7.50 volts @ (77*F) (25*C) |
|
| |
|
|
Float use |
6.75
- 6.90 volts @ (77*F) (25*C) |
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
| Discharge rate at 20* C in Amperes |
|
| |
TIME |
1 |
2 |
3 |
5 |
7 |
10 |
15 |
20 |
30 |
1 |
2 |
3 |
5 |
8 |
10 |
|
| |
|
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
|
| |
4.80V |
57.80 |
47.30 |
38.90 |
35.70 |
31.50 |
26.30 |
18.90 |
16.00 |
10.00 |
6.02 |
3.78 |
2.79 |
1.80 |
1.20 |
0.99 |
|
| |
4.95V |
56.70 |
45.20 |
36.90 |
33.60 |
29.40 |
25.20 |
17.90 |
15.00 |
9.91 |
6.01 |
3.73 |
2.69 |
1.76 |
1.18 |
0.98 |
|
| |
5.10V |
42.00 |
38.90 |
35.70 |
30.50 |
26.30 |
21.50 |
16.80 |
13.60 |
9.78 |
5.90 |
3.60 |
2.60 |
1.74 |
1.17 |
0.95 |
|
| |
5.25V |
32.60 |
31.50 |
29.40 |
27.30 |
24.20 |
20.00 |
16.10 |
12.80 |
9.69 |
5.87 |
3.46 |
2.64 |
1.70 |
1.15 |
0.93 |
|
| |
5.40V |
28.40 |
27.30 |
26.30 |
24.20 |
22.10 |
18.40 |
15.00 |
12.20 |
9.50 |
5.83 |
3.42 |
2.49 |
1.65 |
1.14 |
0.92 |
|
| |
5.50V |
25.20 |
25.10 |
22.10 |
21.00 |
18.90 |
16.80 |
14.20 |
11.60 |
9.30 |
5.74 |
3.40 |
2.48 |
1.62 |
1.12 |
0.90 |
|
| |
5.55V |
23.10 |
22.10 |
21.00 |
20.00 |
17.90 |
15.80 |
13.70 |
11.40 |
9.20 |
5.70 |
3.25 |
2.44 |
1.61 |
1.10 |
0.90 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
