BATTERY
/ 2000 |
TM |
|
|
|
|
|
|
|
|
|
|
| |

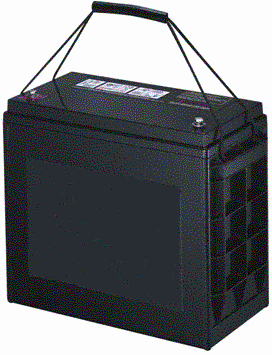

2M-1260-UPS (12V-204Watt) |
UPS/ TELECOM SERIES |
12V-60AH |
|
|
| |
|
|
| |
|
| |
|
SPECIFICATIONS |
|
|
| |
Nominal Voltage |
12 V |
|
|
| |
Terminal Type |
Threaded
Copper Insert |
|
|
| |
Discharge Current Amps |
550A (5 sec) |
|
|
| |
Discharge Current Amps |
250A continuous |
|
|
| |
Maximum charge current |
18.0A |
|
|
| |
Housing |
|
Fire Retardant High Impact ABS |
|
|
| |
Weight |
18.5 kg ( 41
lbs.) |
|
|
| |
Dimensions |
Length |
|
227 mm (14.02") |
8.90" |
|
|
|
| |
Width |
136 mm (7.01") |
5.33" |
|
|
|
| |
Height |
205 mm (11.24") |
8.04' |
|
|
|
| |
Total Height |
207mm 8.12" |
8.12" |
|
|
|
| |
Plates |
Separator |
|
|
| |
Lead Calcium alloy |
Micro porus Fiberglass |
|
|
| |
Self
Discharge @ 77*F (25*C) |
|
|
| |
Capacity after 3 months storage |
91% |
|
|
| |
Capacity after 6 months storage |
82% |
|
|
| |
Capacity after 12 months storage |
64% |
|
|
| |
Capacity
affected by temperature (20 hr. rate) |
|
|
| |
|
|
|
104*F (40*C) |
|
102% |
|
|
| |
|
|
|
77*F (25*C) |
|
100% |
|
|
| |
|
|
|
|
58*F (-15*C) |
|
65% |
|
|
| |
Product
Features |
Capacity @ 77*F (25*C) |
|
|
| |
Maintenance
Free. |
60 Ah @ 20 hour rate to cut off 1.75v/c |
|
|
| |
Sealed
Construction makes it spill proof. |
56 Ah @ 10 hour rate to cut off 1.75v/c |
|
|
| |
Vent system
automatically opens and reseals. |
51 Ah @
5 hour rate to cut off 1.70v/c |
|
|
| 10 year design life |
10 year
design life |
35 Ah @
1 hour rate to cut off 1.55v/c |
|
|
| |
Operates at
low internal pressure |
28Ah @ 15 min rate to cut off 1.67v/c |
|
|
| |
Flame
Retardant ABS housing |
Discharge |
-15oC to 50oC |
|
|
| |
Battery will
operate in any position. |
Charge |
-35oC to 60oC |
|
|
| |
Battery is 100% memory free |
|
|
|
Recommended |
-20oC to 25oC |
|
|
| |
Absorbed glass mat technology |
|
|
Charging (constant voltage) |
|
|
| |
for up to 99% efficient gas recombination |
|
Cycle use |
14.4-
14.7 volts @ (77*F) (25*C) |
|
|
| |
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
|
| |
|
Storage |
9 months @
68*F (20*C) |
|
|
| |
|
|
|
| |
|
| |
|
|
|
|
|
Actual
Wattage/Ampere at discharge @ 25* C. |
|
|
vpc |
min |
5 |
10 |
15 |
30 |
40 |
50 |
|
|
|
|
|
1.75V |
Watt |
381 |
245 |
204 |
102 |
76 |
68 |
|
|
|
|
25°C |
Amp |
228 |
146 |
113 |
60 |
44 |
40 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
